Dex: Multi-step ray tracer

Source file: dex-raytrace.fut

The following is a port of raytrace.dx, which is itself based on this Jax program by Eric Jang. See this blog post for details on the algorithm - this example won’t be getting into those details. We’ve tried to maintain the naming scheme of the original program, but we’ve re-ordered most definitions bring them closer to their first usage. This is mostly necessary due to the somewhat convoluted program structure forced by the use of modules for AD.

import "dex-prelude"

The biggest issue is that the Dex program uses the grad operator to convert distance functions into normal functions. Futhark does not (yet) support anything like this as a language construct. Instead, we use forward-mode AD with dual numbers, which can be implemented as a library in Futhark. It works, and is reasonably efficient in this case, but it is certainly not as concise.

module ad = import "dual-numbers"

module type expanded_field = {
  include ad.ordered_field
  val max : t -> t -> t
  val sqrt : t -> t
  val cos : t -> t
  val sin : t -> t
  val abs : t -> t

module f64_field : (expanded_field with t = f64) = {
  let max = f64.max
  let sqrt = f64.sqrt
  let cos = f64.cos
  let sin = f64.sin
  let abs = f64.abs

We expose all the definitions from f64_field rather than repeating them.

  open ad.f64_field

The field implementation for dual numbers is mostly boilerplate. We cannot reuse the mk_dual parametric module from dual-numbers.fut, because that module chose to make the representation abstract.

module f64_dual_field = {
  type underlying = f64
  type t = (underlying, underlying)

  let primal ((x, _) : t) = x
  let tangent ((_, x') : t) = x'
  let dual0 x : t = (x, 0)
  let dual1 x : t = (x, 1)

  let max (x,x' : f64) (y,y') =
    (f64.max x y,
     if x >= y then x' else y')

  let sqrt (x,x') =
    (f64.sqrt x, x' / (2 * f64.sqrt x))

  let cos (x, x') =
    (f64.cos x, f64.negate x' * f64.sin x)

  let sin (x, x') =
    (f64.sin x, x' * f64.cos x)

  let abs (x,x') =
    (f64.abs x, f64.sgn x * x')

  let negate (x,x') : t = (-x, -x')
  let recip (x,x') : t = (1/x, -(x'/(x*x)))

  let (x,x') + (y,y') : t = f64.((x + y, x' + y'))
  let (x,x') * (y,y') : t = f64.((x * y, x' * y + x * y'))
  let x - y = x + negate y
  let x / y = x * recip y

  let (x,_) == (y,_) = f64.(x == y)
  let (x,_) < (y,_) = f64.(x < y)
  let (x,_) > (y,_) = f64.(x > y)
  let (x,_) <= (y,_) = f64.(x <= y)
  let (x,_) >= (y,_) = f64.(x >= y)
  let (x,_) != (y,_) = f64.(x != y)

  let f64 x = dual0 x
  let zero = f64 0
  let one = f64 1


Sine we need the basic geometry functions of the ray tracer to work with both normal and dual numbers, we define it as a parametric module.

module mk_geometry(Float: expanded_field) = {

type Float = Float.t

The original Dex program implements vectors in three-dimensional space with three-element arrays. This is not optimal in Futhark for reasons explained elsewhere, so instead we import the vector module from another example program.

module threed = import "3d-vectors"

And instantiate it with whatever Float type we have at hand:

module vspace = threed.mk_vspace_3d Float

Convenient shorthands for various vector types and operations:

type Vec = vspace.vector
let (*>) = vspace.scale
let (<+>) = (vspace.+)
let (<->) = (vspace.-)
let (<*>) = (vspace.*)
let dot =
let length = vspace.length
let normalize = vspace.normalise
let cross = vspace.cross
let rotateY = flip vspace.rot_y

These vectors are not arrays and we cannot map them, but we can define our own mapping function.

let vmap (f: Float -> Float) (v : Vec) =
  {x = f v.x, y = f v.y, z = f v.z}

Dex calls the scaling operator .*, but that name is not valid in Futhark. Note that the length function will shadow the one in the Futhark prelude.

Dex’s Color type is from the plot.dex file, which we’re not going to implement in its entirety.

Much of the following is just as straighforward in Futhark as in Dex, and so will not have much commentary.

type Color = Vec
type Angle = Float -- angle in radians

type Distance = Float

type Position = Vec
type Direction = Vec  -- Should be normalized.

type BlockHalfWidths = Vec
type Radius = Float
type Radiance = Color

type ObjectGeom
  = #Wall Direction Distance
  | #Block Position BlockHalfWidths Angle
  | #Sphere Position Radius

type Surface
  = #Matte Color
  | #Mirror

type OrientedSurface = (Direction, Surface)

type Object
  = #PassiveObject ObjectGeom Surface
  -- position, half-width, intensity (assumed to point down)
  | #Light Position Float Radiance

The signed distance function

This function is the reason why the Futhark implementation is so convoluted, as we will need its derivative.

let sdObject (pos:Position) (obj:Object) : Distance =
  match obj
  case #PassiveObject geom _ ->
    (match geom
     case #Wall nor d -> Float.(d + dot nor pos)
     case #Block blockPos halfWidths angle ->
       let pos' = rotateY (pos <-> blockPos) angle
       in length (vmap (Float.max (vmap Float.abs pos' <-> halfWidths))
     case #Sphere spherePos r ->
       let pos' = pos <-> spherePos
       in Float.(max (length pos' - r) (f64 0)))
  case #Light squarePos hw _ ->
    let pos' = pos <-> squarePos
    let halfWidths = {x=hw, y=Float.f64 0.1, z=hw}
    in length (vmap (Float.max
                    (vmap Float.abs pos' <-> halfWidths))

With that done, the rest of the ray tracer can be written in a non-modularised way, using just floating-point numbers.


Working with the geometry

We’ll need to instantiate the geometry module twice: once with ordinary floats, and once with dual numbers.

module geometry = mk_geometry f64_field
module geometry_dual = mk_geometry f64_dual_field

To use geometry_dual.sdObject, we’ll need to convert objects to objects-with-dual-numbers. For this, we’ll first define some utility functions.

let dual0 = f64_dual_field.dual0
let dual1 = f64_dual_field.dual1
let dualVec {x,y,z} = {x=dual0 x, y=dual0 y, z=dual0 z}

And then a bunch of boilerplate definitions.

let dualGeom (geom: geometry.ObjectGeom) : geometry_dual.ObjectGeom =
  match geom
  case #Wall nor d ->
    #Wall (dualVec nor) (dual0 d)
  case #Block blockPos halfWidths angle ->
    #Block (dualVec blockPos) (dualVec halfWidths) (dual0 angle)
  case #Sphere spherePos r ->
    #Sphere (dualVec spherePos) (dual0 r)

let dualSurface (surf: geometry.Surface) : geometry_dual.Surface =
  match surf
  case #Matte c -> #Matte (dualVec c)
  case #Mirror -> #Mirror

let dualObject (obj: geometry.Object) : geometry_dual.Object =
  match obj
  case #PassiveObject geom surface ->
    #PassiveObject (dualGeom geom) (dualSurface surface)
  case #Light squarePos hw r ->
    #Light (dualVec squarePos) (dual0 hw) (dualVec r)

The non-dual-number geometry module contains various useful type definitions. Instead of replicating their definitions, we make abbreviations.

type Object = geometry.Object
type Position = geometry.Position
type Direction = geometry.Direction
type Distance = geometry.Distance
type Radiance = geometry.Radiance
type Color = geometry.Color
type Surface = geometry.Surface
type OrientedSurface = geometry.OrientedSurface
type Vec = geometry.Vec

We also need some of the geometry functions:

let dot =
let (<+>) = (geometry.<+>)
let (<->) = (geometry.<->)
let (<*>) = (geometry.<*>)
let (*>) = (geometry.*>)
let normalize = geometry.normalize
let length = geometry.length

And a few more shorthands:

let vec x y z : Vec = {x,y,z}

Finally we can define the function that computes surface normals at a given position. This function is the reason we went to all that trouble with dual numbers.

let calcNormal (obj: Object) (pos: Position) : Direction =
  let f i =
    let pos' = {x = if i == 0 then dual1 pos.x else dual0 pos.x,
                y = if i == 1 then dual1 pos.y else dual0 pos.y,
                z = if i == 2 then dual1 pos.z else dual0 pos.z}
    in f64_dual_field.tangent (geometry_dual.sdObject pos' (dualObject obj))
  in geometry.normalize (vec (f 0) (f 1) (f 2))

Random sampling

Since dex-prelude.fut defines the same random number generation interface as the Dex program, the sampling functions are straightforward ports.

First, a function for generating a number in a range:

let randuniform (lower: f64) (upper: f64) (k: Key) =
  let x = rand k
  in (lower + x * (upper-lower))

Sample within a square with side length 2*hw:

let sampleSquare (hw: f64) (k: Key) : Position =
  let (kx, kz) = splitKey k
  let x = randuniform (- hw) hw kx
  let z = randuniform (- hw) hw kz
  in {x, y=0.0, z}

Sample within a hemisphere in the direction of the normal vector:

let sampleCosineWeightedHemisphere (normal: Vec) (k: Key) : Vec =
  let (k1, k2) = splitKey k
  let u1 = rand k1
  let u2 = rand k2
  let uu = geometry.normalize (geometry.cross normal (vec 0.0 1.1 1.1))
  let vv = geometry.cross uu normal
  let ra = f64.sqrt u2
  let rx = ra * f64.cos (2 * f64.pi * u1)
  let ry = ra * f64.sin (2 * f64.pi * u1)
  let rz = f64.sqrt (1.0 - u2)
  let rr = (rx *> uu) <+> (ry *> vv) <+> (rz *> normal)
  in normalize rr

Ray marching

The essence of ray marching is simple: move along a given vector and find the first object we collide with. We do this the naive way, by invoking the distance function for every single object. This is not efficient, to put it mildly, but it is easy to implement.

First we need a minimumBy function. Despite Futhark lacking Dex’s support for ad-hoc polymorphism, which matters here as we end up passing in the less-than operator, it doesn’t end up looking too bad.

let minBy 'a 'o (lt: o -> o -> bool) (f: a->o) (x:a) (y:a) : a =
  if f x `lt` f y then x else y

let minimumBy [n] 'a 'o (lt: o -> o -> bool) (f: a->o) (xs: [n]a) : a =
  reduce (minBy lt f) xs[0] xs

A scene is a collection of objects.

type Scene [n] = [n]Object

We can now define a function for finding the closest object, given a position.

let sdScene (objs: Scene []) (pos: Position) : (Object, Distance) =
  let i =
    minimumBy (<) (\i -> geometry.sdObject pos objs[i])
              (indices objs)
  in (objs[i], geometry.sdObject pos objs[i])

When we ray march, we either collide with nothing and disappear into the aether, hit a light, or hit an object, in which case we also produce information about the surface, including the surface normal.

type Ray = (Position, Direction)

type RayMarchResult
  = #HitObj Ray OrientedSurface
  | #HitLight Radiance
  | #HitNothing

The ray marching function is defined with the iter function in Dex. In Futhark, a while loop can express it in an equally natural way.

let positiveProjection (x: Vec) (y: Vec) =
  dot x y > 0

let raymarch [n] (scene:Scene [n]) (ray:Ray) : RayMarchResult =
  let max_iters = 100
  let tol = 0.01
  let (rayOrigin, rayDir) = ray
  let (_, _, res) =
   loop (i, rayLength, _) = (0, 10 * tol, #HitNothing)
     while i < max_iters do
     let rayPos = rayOrigin <+> (rayLength *> rayDir)
     let (obj, d) = sdScene scene rayPos
     let dNew = rayLength + 0.9 * d
     in if d >= tol
        then (i+1, dNew, #HitNothing)
        let surfNorm = calcNormal obj rayPos
        in if positiveProjection rayDir surfNorm
           then (i+1, dNew, #HitNothing)
           else (max_iters,
                 match obj
                 case #PassiveObject _ surf ->
                   #HitObj (rayPos, rayDir) (surfNorm, surf)
                 case #Light _ _ radiance ->
                   #HitLight radiance)
  in res

Light sampling

These definitions are pretty straightforward, and similar to those in Dex.

To figure out whether a light is shining on us along a given path, we just march along that path and see if we hit a light. If we do, the radiance is that light.

let rayDirectRadiance [n] (scene: Scene [n]) (ray: Ray) : Radiance =
  match raymarch scene ray
  case #HitLight intensity -> intensity
  case #HitNothing -> vec 0 0 0
  case #HitObj _ _ -> vec 0 0 0

Shorthands for vectors along the cardinal axes will become useful in the following.

let xHat : Vec = vec 1 0 0
let yHat : Vec = vec 0 1 0
let zHat : Vec = vec 0 0 1

let relu (x: f64) = f64.max x 0

let probReflection ((nor, surf): OrientedSurface) (_:Ray) ((_, outRayDir):Ray) : f64 =
  match surf
  case #Matte _ -> relu (dot nor outRayDir)
  case #Mirror  -> 0

let directionAndLength (x: Vec) =
  (normalize x, length x)

The following function determines how much light is shining on a given point. It’s very similar to the Dex function. Dex uses an explicit accumulator that is updated via effects, but I don’t think it makes it much more readable in this case.

let sampleLightRadiance [n] (scene: Scene [n])
                            (osurf: OrientedSurface)
                            (inRay: Ray)
                            (k: Key) : Radiance =
  let (surfNor, _) = osurf
  let (rayPos, _) = inRay
  in loop radiance = vec 0 0 0 for obj in scene do
       match obj
       case #PassiveObject _ _ -> radiance
       case #Light lightPos hw _ ->
         let (dirToLight, distToLight) =
           directionAndLength (lightPos <+> sampleSquare hw k <-> rayPos)
         in if ! (positiveProjection dirToLight surfNor)
            then radiance -- light on the far side of current surface
            let fracSolidAngle = relu (dot dirToLight yHat) *
                                 sq hw / (f64.pi * sq distToLight)
            let outRay = (rayPos, dirToLight)
            let coeff = fracSolidAngle * probReflection osurf inRay outRay
            in radiance <+> (coeff *> rayDirectRadiance scene outRay)


Almost done. Everything here is very similar to the Dex code.

type Filter = Color

let applyFilter (filter:Filter) (radiance:Radiance) : Radiance =
  filter <*> radiance

let surfaceFilter (filter:Filter) (surf:Surface) : Filter =
  match surf
  case #Matte color -> filter <*> color
  case #Mirror      -> filter

let sampleReflection ((nor, surf): OrientedSurface) ((pos, dir): Ray) (k: Key) : Ray =
  let newDir = match surf
               case #Matte _ -> sampleCosineWeightedHemisphere nor k
               case #Mirror  -> dir <-> 2 * dot dir nor *> nor
  in (pos, newDir)

We’re excluding Dex’s shareSeed field from the tracing parameters, since it seems mostly relevant for showing the impact of poor seeding on the convergence of the algorithm.

type Params = { numSamples : i32,
                maxBounces : i32 }

let trace [n] (params: Params) (scene: Scene [n]) (init_ray: Ray) (k: Key) : Color =
  (.2) <|
    (i, filter, radiance, ray) = (0, (vec 1 1 1), (vec 0 0 0), init_ray)
  while i < params.maxBounces do
    match raymarch scene ray
    case #HitNothing ->
      (params.maxBounces, filter, radiance, ray)
    case #HitLight intensity ->
      if i == 0
      then (params.maxBounces, filter, intensity, ray)
      else (params.maxBounces, filter, radiance, ray)
    case #HitObj incidentRay osurf ->
      let (k1, k2) = splitKey (hash k i)
      let lightRadiance = sampleLightRadiance scene osurf incidentRay k1
      let outRayHemisphere = sampleReflection osurf incidentRay k2
      let newFilter = surfaceFilter filter osurf.1
      let newRadiance = radiance <+> applyFilter newFilter lightRadiance
      in (i+1, newFilter, newRadiance, outRayHemisphere)


The camera controls how the initial rays are sent into the scene.

type Camera =
  { numPix     : i64,
    pos        : Position,
    halfWidth  : f64,
    sensorDist : f64 }

And now we’re ready to produce the n*n array of initial rays and RNG states.

let cameraRays (n: i64) (camera: Camera) : [n][n](Ray, Key) =
  let halfWidth = camera.halfWidth
  let pixHalfWidth = halfWidth / f64.i64 n
  let ys = reverse (linspace n (-halfWidth) halfWidth)
  let xs = linspace n (-halfWidth) halfWidth
  let kss = tabulate_2d n n (\i j -> newKey (i32.i64 (1+i*n+j)))
  let rayForPixel y x k =
    let dx = randuniform (-pixHalfWidth) pixHalfWidth k
    let dy = randuniform (-pixHalfWidth) pixHalfWidth k
    in ((camera.pos,
         normalize (vec (x + dx) (y + dy) (-(camera.sensorDist)))),
  in map2 (\y ks -> map2 (rayForPixel y) xs ks) ys kss

Most ray tracers perform multiple samples per pixel and take the average. The Dex program defines the sampleAveraged function to be (potentially) parallel. We know the parallelism would never be exploited anyway, so we define it as a sequential loop, mostly to make the random number state management simpler.

let sampleAveraged (sample: Key -> Vec) (n: i32) (k: Key) : Vec =
  (loop acc = vec 0 0 0 for i < n do
   (acc <+> sample (ixkey k (i64.i32 i))))
  |> ((1/f64.i32 n) *>)

The Dex implementation uses an unusual relative colorisation strategy, where the final color values are all divided by the average intensity. This is likely so we won’t have to fiddle with the light intensities to avoid very bright or very dark images.

let meanIntensity image =
  image |> flatten |> map (\{x,y,z} -> (x+y+z)/3) |> mean

Smile for the camera!

let takePicture [m] (params: Params) (scene: Scene [m]) (camera: Camera) =
  let n = camera.numPix
  let rays = cameraRays n camera
  let sample (r, k) =
    sampleAveraged (trace params scene r) params.numSamples k
  let image = map (map sample) rays
  let mean = meanIntensity image
  in map (map ((1/mean)*>)) image

Scene definition

The only odd thing here is that apparently our vectors rotate opposite of the way Dex does it, so I had to give the block a rotation of -0.5 instead of 0.5.

let lightColor = vec 0.2 0.2 0.2
let leftWallColor  = 1.5 *> vec 0.611 0.0555 0.062
let rightWallColor = 1.5 *> vec 0.117 0.4125 0.115
let whiteWallColor = (1/255) *> vec 255.0 239.0 196.0
let blockColor     = (1/255) *> vec 200.0 200.0 255.0

let neg = ((-1)*>)

let theScene : Scene [] =
    [ #Light (1.9 *> yHat) 0.5 lightColor
    , #PassiveObject (#Wall      xHat  2.0) (#Matte leftWallColor)
    , #PassiveObject (#Wall (neg xHat) 2.0) (#Matte rightWallColor)
    , #PassiveObject (#Wall      yHat  2.0) (#Matte whiteWallColor)
    , #PassiveObject (#Wall (neg yHat) 2.0) (#Matte whiteWallColor)
    , #PassiveObject (#Wall      zHat  2.0) (#Matte whiteWallColor)
    , #PassiveObject (#Block  (vec 1.0 (-1.6) 1.2) (vec 0.6 0.8 0.6) (-0.5)) (#Matte blockColor)
    , #PassiveObject (#Sphere (vec (-1.0) (-1.2) 0.2) 0.8) (#Matte (0.7 *> whiteWallColor))
    , #PassiveObject (#Sphere (vec 2 2 (-2)) 1.5) #Mirror

let defaultParams : Params = { numSamples = 50
                             , maxBounces = 10 }

let defaultCamera : Camera = { numPix     = 250
                             , pos        = 10.0 *> zHat
                             , halfWidth  = 0.3
                             , sensorDist = 1.0 }

Entry point

This is not part of the Dex program, but is needed if we want Futhark to produce anything for the outside world.

First, a function to convert floating-point colors to RGB-packed colors with 8 bits per channel. Note that we have to cap each channel, since there is no guarantee that the color components produced by the ray tracer cannot exceed 1.0.

let pix (c: Color) =
  (u32.f64 (f64.min 255 (c.x * 255)) << 16) |
  (u32.f64 (f64.min 255 (c.y * 255)) << 8) |
  (u32.f64 (f64.min 255 (c.z * 255)))

let main n =
  takePicture defaultParams theScene (defaultCamera with numPix = n)
  |> map (map pix)

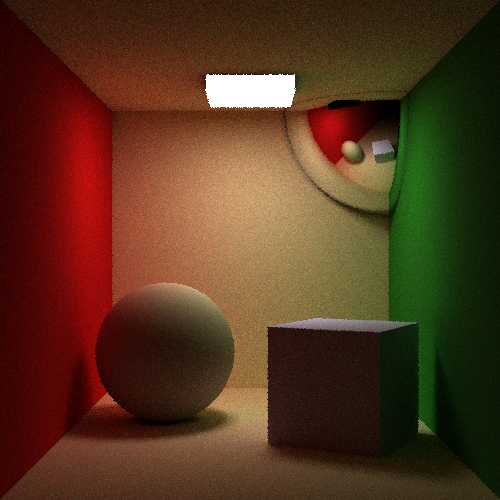

> :img main 500i64
